SpecterDR 1.5x/6x
Shipping calculated at checkout
The Best Single Solution for Long Range and CQB Engagements
Description
Introduced in 2024, the ELCAN SpecterDR 1.5x/6x now comes equipped with integrated Picatinny rails, ambidextrous magnification throw levers, improved battery covers, and hard-wearing CERAKOTE® performance finishes in Black or Flat Dark Earth (FDE).
The ELCAN SpecterDR 1.5x/6x is the second evolution in the family of Dual Role Optical Sights. Based upon the battle-proven SpecterDR design, the SpecterDR 1.5x/6x provides higher magnification to enable greater precision and longer engagement ranges, while at the same time providing exceptional field of view in CQB mode.
The SpecterDR 1.5-6 enjoys ELCAN’s famous crystal-clear optics as well as a generous eye relief, making it the ideal instrument for designated marksman rifles and other long range applications. As with all SpecterDR sights, the magnification and field of view can be changed instantly with the throw of a lever. Depending upon the situation, the user may adjust the sight to illuminate the crosshair or just a brilliant red dot in the center. Because the reticles are etched in glass, they are plainly visible even in the case of loss of electrical power due to battery failure or EMP.

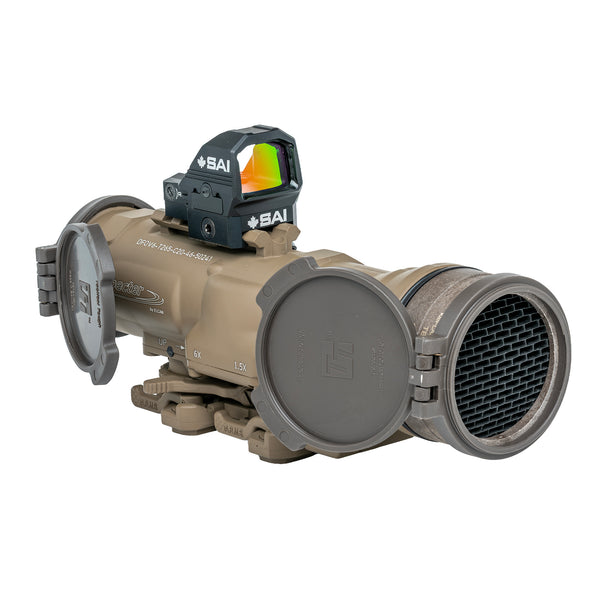

Optional SAI™ Mini Red Dot Sight (MRDS)
Now available as an integrated add-on, the SAI™ Mini Red Dot Sight (MRDS) is engineered for rapid target acquisition and pinpoint accuracy in close to mid-range engagements. Compact and rugged, it’s ideal for pistols, carbines, shotguns, or as an auxiliary sight on long-range magnified optics.
The SpecterDR family offers the best single solution for Long Range and CQB engagements and is designed to withstand the rigors of modern professional use.
Reticle Details
- SpecterDR 1.5x/6x Reticle - 5.56
- SpecterDR 1.5x/6x Reticle - 7.62
Features & Specs
Specifications
| Feature | Specification |
|---|---|
| Magnification | 6x / 1.5x |
| Length | 183mm nominal |
| Width | 69mm nominal |
| Height | 73mm nominal |
| Weight | 715g nominal |
| Reticle | Dual-thickness ballistic crosshair with user-selectable red dot and VSOR rangefinder |
| Aiming Dot diameter | 1.5 MoA @ 6x, 6 MoA @ 1.5x |
| Ballistic correction: | |
| DFOV156-C1: | CX5455 reticle: 100-1000m for 5.56 NATO |
| DFOV156-C2: | CX5456 reticle: 100-1000m for 7.62 NATO |
| CQB offset | <44mm @ 60m |
| Field of View | 16 deg @ 1.5x, 4 deg @ 6x |
| FoV @ 6x | 7 m @ 100 m (21 ft @ 100 yds) |
| FoV @ 1.5x | 28.7 m @ 100 m (86 ft @ 100 yds) |
| Illumination source | Battery-powered LED |
| Crosshair illumination | 5 settings, AN/PVS-22 night vision compatible |
| Red Dot illumination | 5 settings, AN/PVS-22 night vision compatible |
| Eye Relief | 70 mm |
| Entrance pupil | 42mm |
| Exit pupil | 7mm |
| Nominal focus | 300m @ 6x, 105m @ 1.5x |
| Fixed focus range | 20m to infinity |
| Battery type | CR2032 (3v Lithium) |
| Battery life | 382hrs on max RD/reticle setting, 1730hrs on second highest RD setting, 1208 hrs on second highest reticle setting |
| Exterior finish | CERAKOTE® performance finish in Black or Flat Dark Earth (FDE) |
| Adjustment resolution | 0.5 minute of angle |
| Adjustment range | 120 minutes of angle |
| Base requirement | Mil-Std-1913 ?Picatinny Rail? (Weaver compatible) |
| Attachment | ARMS Levers |
| Shockproof: | 450 g's |
| Available accessorys | ARD (Anti-Reflection Device) Flip Covers |
FAQ
Q: How is the reticle calibrated?
A: The 5.56mm reticle is calculated using 62gr M855 ammunition from a 16” M4 barrel. The 7.62mm reticle is a blended reticle, using data from 147gr M80 and 168gr match ammunition from a 20” AR10 barrel.
Q: What parts of the reticle illuminate?
A: The crosshairs illuminate for a brilliant aim point through the whole magnification range, the Rapid Aiming Feature does not.
Q: What does the optic come with?
A: The optic comes equipped with Tenebraex scope covers and KillFLASH ARD, a LensPen, and battery.
Q: How do I know the optic is authentic?
A: Please email seral number along with pictures to our support department to verify authenticity support@armament.com
Q: Does it come with a mount
A: Yes, the mount is integral to the system, windage and elevation adjustments are made externally on the mount. MOUNT IS INCLUDED!
